FTTH Outdoor 1/2/4/8/12 Cores G652D/G657A1/2 Single Mode GJXFHA Bow-type Drop Cable

Product Categories
Shenzhen Hicorpwell Technology Co., Ltd
Contact Now

FTTH Outdoor 1/2/4/8/12 Cores G652D/G657A1/2 Single Mode GJXFHA Bow-type Drop Cable

  • 1
  • 2

Brand Name : HICORPWELL

Model Number : GYTS Glass Fiber Optic Cable

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 1KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs Per Week

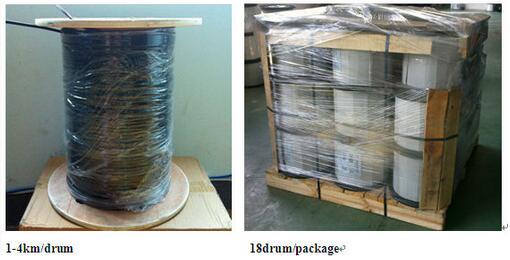

Packaging Details : 1000m/wooden drum/carton or 2000m/wooden drum/carton

Type : Cat 7, FTTH FTTH G657A LSZH

Name : ftth drop cable g657a g657a

Fiber material : Doped Silica

Length : Per Reel.100m -1000m

Strengthen member : FRP or Steel

Static Bending radius : 10*Cable-diameter

Jacket Material : LSZH/ PVC

Fiber Brand : YOFC, CORNING

Contact Now

FTTH outdoor 1/2/4/8/12 cores G652D/G657A1/2 single mode GJXFHA bow-type drop cable for duct

The loose tubes are made of high modulus plastics (PBT) and filled with a water resistant filling gel.

Loose tubes are stranded around non-metallic central strength member (FRP).

The cable core wrapped with a water blocking tape, and then aramid yarns or glass yarns

are applied over the cable core. Polyethylene (PE) is extruded as outer sheath.

Feature

  1. Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
  2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
  3. Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
  4. Simple structure , light weight and high practicability
  5. special flute desigh , easily strip and splice , simplify the installation and maintenance
  6. Low smoke , zero halogen and flame retardant sheath

Performance

  • Applications: Suitable for long-distance communication and indoor communication
  • Way of laying: Aerial , Duct
  • Operating temperature: -40 ~ + 70 °C
  • Bend radius: static 10x cable diameter :Dynamic 20x cable diameter

Product Parameters

Product name

FTTH outdoor 1/2/4/8/12 cores G652D/G657A1/2 single mode GJXFHA bow-type drop

cable for duct

Introduction

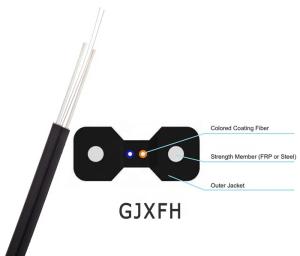

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics

(FRP) are placed at the two sides. The, the cable is completed with a black or color

LSZH (Low smoke, Zero halogen, Flame-retardant) sheath and armed with aluminum

band. Finally the cable is completed with a PE sheath.

Characteristics

1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3. Novel flute design, easily strip and splice, simplify the installation and maintenance.

4. Low smoke,.zero halogen and flame retardant sheath; PE sheath protects cable from ultraviolet radiation.

5. Simplex structure, light weight and high practicability.

6. APL moisture barrier.

Application

1. Indoor riser level and plenum level cable distribution

2. Interconnect between instruments, communication equipments.

Standards

Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc;

and meet the requirements of UL approval for OFNR and OFNP.

FTTH Outdoor 1/2/4/8/12 Cores G652D/G657A1/2 Single Mode GJXFHA Bow-type Drop Cable
