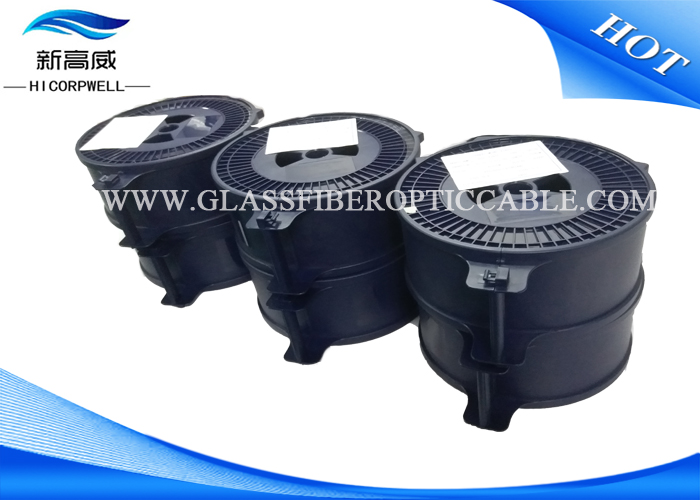

SMF-28 657A1 Bare Optical Fiber Cable Spools Bare Optical Fiber

Brand Name : HICORPWELL

Model Number : SMF-28 657A1 Bare Optical Fiber Cable Spools Bare Optical Fiber

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 10KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000KM Per Month

Packaging Details : Standard length: 2km/roll (as per your requirements)

Fiber Type : G652/G657 250um bare fiber

Paintcoat Color : Aqua,yellow ,blue Or Others

Cable Purpose : ODTR or FO Cable

1310nm : 0.36-0.22 DB/Km

1550nm : 0.5-0.4 DB/Km

Fiber : G652D,G657A

Certificate : IEC 60794-2-10/11

Connectors : Can be added as per your request, SC/LC/FC/ST etc

Contact Now

SMF-28 657A1 Bare Optical Fiber Cable Spools Bare Optical Fiber

Bare fiber reel delivers a good macrobending performance in the industry while maintaining compatibility
with current optical fibers, equipment, practices and procedures.
When using in an OTDR dummy fiber, it connects the OTDR to the link-under-test, discloses the insertion
loss and reflectance of the near-end connection.
OTDR Dummy fiber is used in conjunction with an OTDR to measure complete link loss of a fiber.
This full-spectrum single-mode optical fiber reel when subjected to smaller radii bends experiences
virtually no signal loss. It is your best assistant in testing project.

For testing project, Both G.652 and G.657A type bare fiber are available.

Features:

  • Full-spectrum single mode fiber
  • Small macrobending radii, comply with G.657A or G.652D standard
  • Small attenuation value
  • Suitable for any optical testing environment
  • G652/G657 250um bare fiber
  • Connectors can be added as per your request, SC/LC/FC/ST etc
  • Standard length: 2km/roll (as per your requirements)



Specifications:


Physical parameters
Fiber Type Single mode
Diameter of Coated Fiber 250um
Diameter of Bare Fiber 125um
Min Macrobending Radus 33mm(G.652D) / 15mm(G.657A)
Typical attenuation value
1310nm working wavelength 0.33~0.35 dB/km
1490nm working wavelength 0.21~0.24dB/km
1550nm working wavelength 0.19~0.20dB/km
1625nm working wavelength 0.21~0.23dB/km

OEM service:


Cable Color:Red, Purple, White, Black, Orange and Pink can be customized.


Double-Colored boot Combination. Red-Blue, Red-Black, Blue-White, White-Green, Yellow-Blue,

Black-Blue etc.


Cable Printing. SM/MM, Cable O.D, Cable Jacket, Length, Parameters, Specifications

can be printed on the cable.


Cable Tag. Flag tag and wrap-around tag for options, the tagged information can be customized.

Custom Length. Any length can be customized as you required.


Custom Label. The paper label stick on the packing bag can be made with your required information.


Custom Package. The Brown carton can be printed with your logo.

Part No.

Description
Fiber-ROLL-SM10

SM G652D, 1KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-SM20

SM G652D, 2KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,


LC/UPC, LC/APC optional
Fiber-ROLL-MM10

MM (62.5/125um or 50/125um), 1KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-MM20

MM (62.5/125um or 50/125um), 2KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-SM710

SM G657A, 1KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-SM720

SM G657A, 2KM,


Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,


LC/UPC, LC/APC optional
Fiber-ROLL-OM310

OM3, 1KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-OM320

OM3, 2KM,


Connector; FC/PC, SC/PC, ST/PC, LC/PC optional


SMF-28 657A1 Bare Optical Fiber Cable Spools Bare Optical Fiber
