The glass is a higher grade than normal 50/125 cables. You should ensure that you purchase patch cables that match the core of any other fibers already in your system. The PVC jacket of the OM3 multimode fiber is normally “aqua” color (although we can make them in other colors)
and is 3.0mm in diameter for ST, SC, and FC connectors, but 2.0mm if the cable has an LC or MTRJ connector.
We can also make these cables with a plenum jacket or a LSZH jacket, if required.
The cables below are 50/125 glass and are classified as OM3 fiber, which means at 850nm (wavelength of the light source),
they have a bandwidth of 1500 MHz-km, maximum attenuation of 2.3dB/km, and a typical maximum distance of 1km at 100mbps
and at 1000mbps, and 300 meters at 10Gbps.
At a wavelength of 1300nm, they have a bandwidth of 500 MHz-km, max attenuation of 0.6dB/km, and typical max distance of 2km (at 100mbps),
600 meters (at 1000mbps), and 300 meters (at 10Gbps).
These are duplex cables (two fibers and two connectors at each end).
These 50/125 fiber cables are optimized for 850nm light sources and gigabit or ten gigabit speeds.
The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with
traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient.

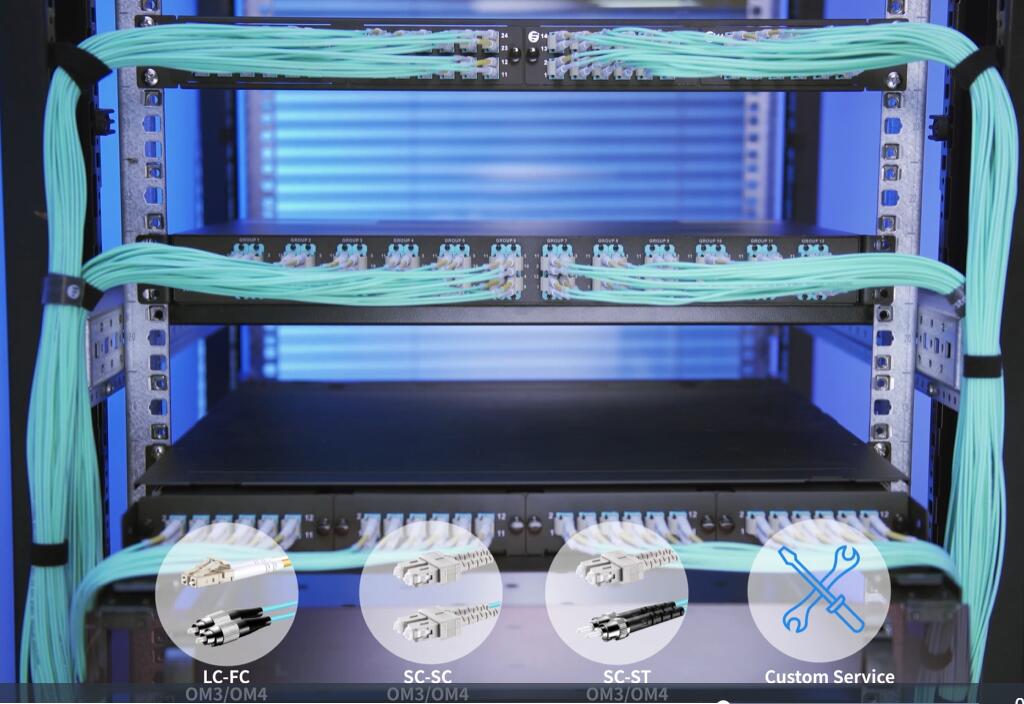

It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms,
cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc.
for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
Features
-
Small diameter, light weight,flame retardant,excellent strippability
-
-
Low-attenuation, High flexibility
-
- No need for transition connector box or pigtail between tight buffer fiber and cable,
-
- low cost with installation cause to it’s no needs to clean the water-proofing ointment.
-
-
The fiber optic cable complies with Standard GJFJV cable complies with Standard
-
-
YD/T1258.2-2009,ICEA-596,GR-409,IEC794
-
-
Storage/Operating Temperature: -20°C to + 60°C
Standards:
Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Products Features:
Small diameter, light weight,flame retardant,excellent strippability
Low-attenuation, High flexibility
Cable diameter:
| | MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm |
