FTTH Fiber Optical Fast Connector SC APC UPC Field Installable Fiber Connector
Product Description
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
It can provide Open flow and precast type of products, whose optical and mechanical specification
meets the standard optical fiber connector.It is designed for high quality and high efficiency for installation.
Feature
- No special tools needed when installed
- Without any gluing and polishing process
- Can be made on-site without splicing connectors
- Only 30 seconds needed to learn the process of installation
- Good high temperature performance and good sealing
- Easy installation, quick and fast in the assembly field
- High return loss and low insertion loss
Application
- Distribution Frames & Patch Panels
- Fiber Optic Patch Cord & Pigtail
- Telecommunication Networks
- FTTH (Fiber To The Home)
- Local Area Network (LAN)
- Test Equipment.
- CATV & CCTV
Performance
(1). Insertion loss:≤0.35dB ,Return loss:≥60dB.
(2). Mechaincal Durability:1000matings
(3). Storage temperature:-40ºCto+85ºC
(4). Operation temperature:- 40 ~ + 85 ºC
(5). Tensile Strengh:>30N
(6). Number of repeated use:5 times above
(7). SC connector according to IEC 61754-4 .
(8). Suitable for cable outer diameter 0.9 mm, 2.0 mm and 3.0 mm, 2 * 3.0 mm.
Specifications
| Fiber Optic Cable | 2.0mmx3.0mm |
| Plug Type | SC/ UPC or APC |
| Fiber diameter | 0.125mm |
| Fiber Mode | Singlemode |
| Insertion Loss | <0.5dB (typical 0.2dB) |
| Return Loss | <50dB |
| Tensile strength | <20N |
| Temperature | -40℃—+70℃ |
| Temperature cycling | IL<0.3dB,RL<5dB |
| Items | Test condition | Value |
| Optical performance | Insertion Loss(1310nm&1550nm) | <0.2dB(typical)/ 0.5dB(Max) |
| Return Loss(1310nm&1550nm) | UPC>40dB,APC>50dB |
| Environmental Performance (Max. Insertion Loss change) | Temperature Cycle -20°C ~+70°C (96hours) | <0.2dB |
| Mechanical Performance (Max. Insertion Loss change) | Online tension 20N- 100N | <0.2dB |
| Impaction 3 axis/3times 4m high | <0.2dB |
| Repeated operation times | 5 |
Product Tags:
|
|

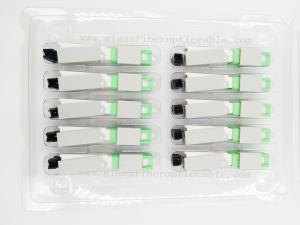

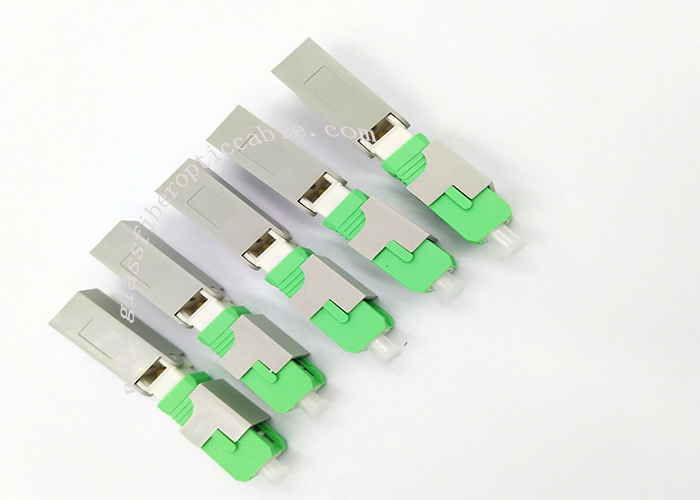

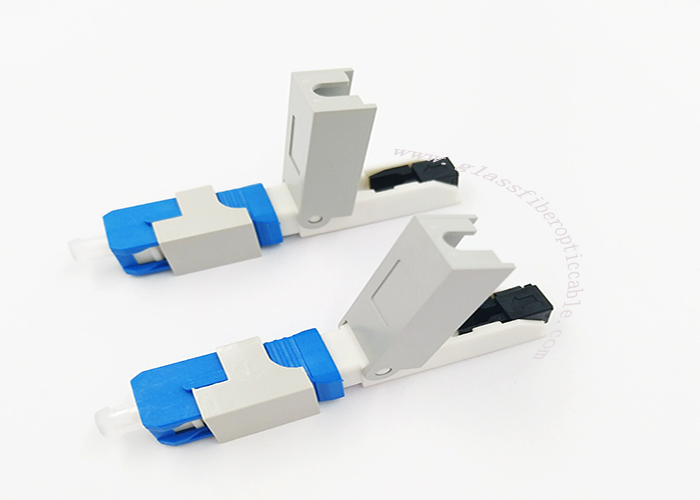

FTTH Fiber Optical Fast Connector SC APC UPC Field Installable Fiber Connector Images
|
