Name: Outdoor Direct Buried Fiber Optic Cable With 12 32 Core GYTA Glass Fiber Optic Cable
Brand: HICORPWELL
Price: 1 USD

Brand Name : HICORPWELL

Model Number : Direcy Buried 12/32 Core GYTA Glass Fiber Optic Cable

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 1KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 500KM Per Week

Packaging Details : wooden drum ,iron-wooden drum with fumigated or not

Delivery Time : 10-15working days

Form Factors : Direcy Buried 12/32 Core GYTA Glass Fiber Optic Cable

Fiber count : 2-288

Paintcoat Color : Black

Fiber material : Doped Silica

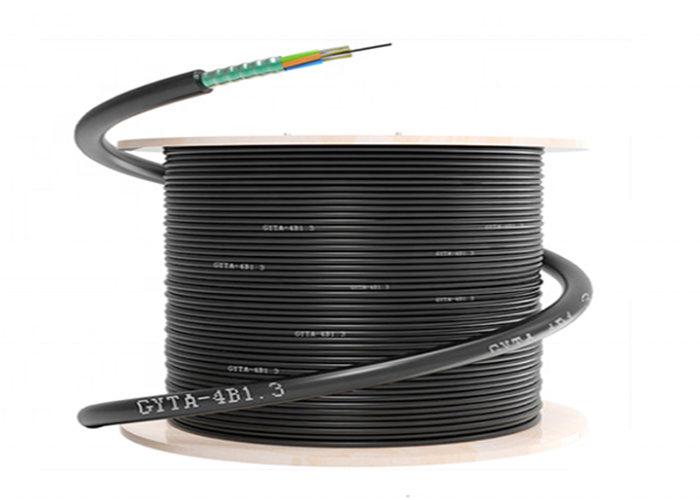

Length : Per Reel.100m -1000m

Application : Outdoor Communication

Static Bending radius : 10*Cable-diameter

Jacket Material : LSZH/ PVC

Contact Now

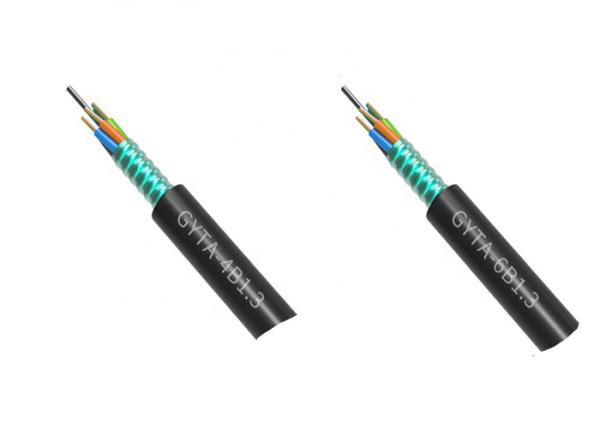

Outdoor Direct Buried Fiber Optic Cable with 12/ 32 Core GYTA Glass Fiber Optic Cable

Fiber cable information:

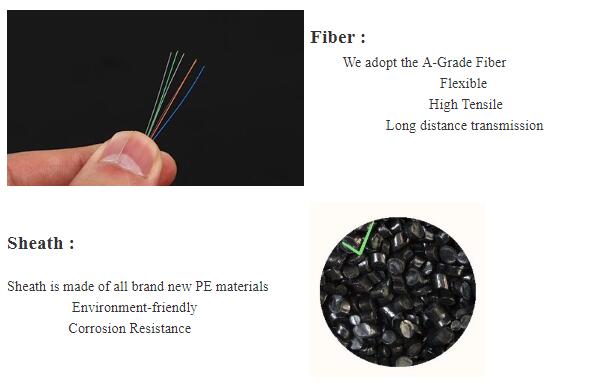

GYTA53 12/32 core fiber optic cable , 250um, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic locates in the center of core as a non-metallic strength member.

The tubes are stranded around the strength member into a compact and circular core.

After the cable core is filled with the filling compound to protect it from water ingress.

The cable is completed with a PE sheath.

Packing& Delivery for GYTA53 12/32 core single mode fiber optic cable

Delivery GYTA53 12/32 core single mode fiber optic cable

Regularly 5-15 days after receiving the deposit,but still according to the specific quantity

Cable Parameters
Items		Specifications
Fiber Count		2~24
Colored Coating Fiber	Dimension	260µm±15µm
Colored Coating Fiber	Color	Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm	Dimension	2.10mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	1.0mm
Strength Member	Material	Steel
Outer Jacket	Dimension	8.0mm±0.1mm
	Material	PE
	Color	Black

Other Main Parameters FYI:

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic
GYTA53-2-6	2-6	1	5	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-8-12	8-12	2	4	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-14-18	14-18	3	3	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-20-24	20-24	4	2	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-26-30	26-30	5	1	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-32-36	32-36	6	0	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-38-48	38-48	4	1	15.4	234	1000/3000	1000/3000	10D/20D
GYTA53-50-60	50-60	5	0	15.4	234	1000/3000	1000/3000	10D/20D
GYTA53-62-72	62-72	6	0	15..9	244	1000/3000	1000/3000	10D/20D
GYTA53-74-84	74-84	7	1	18	297	1000/3000	1000/3000	10D/20D
GYTA53-86-96	86-96	8	0	18	297	1000/3000	1000/3000	10D/20D
GYTA53-98-108	98-108	9	1	19.4	338	1000/3000	1000/3000	10D/20D
GYTA53-110-120	110-120	10	0	19.4	338	1000/3000	1000/3000	10D/20D
GYTA53-122-132	122-132	11	1	21.3	392	1000/3000	1000/3000	10D/20D
GYTA53-134-144	134-144	12	0	21.3	392	1000/3000	1000/3000	10D/20D
GYTA53-146-216	146-216			21.3	395	1000/3000	1000/3000	10D/20D
