Outdoor Singlemode Fibre Cable OS2 Multi-Loose Tube Direcy Buried 48 Core GYTA Glass Fiber Optic Cable
Fiber cable information:

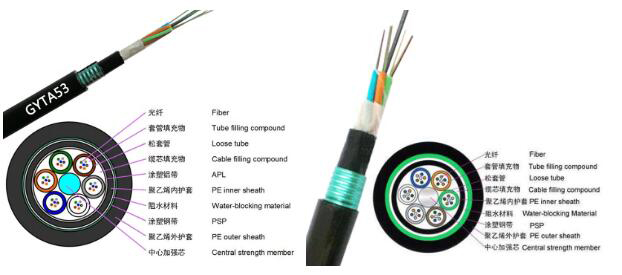

GYTA53 48 core fiber optic cable , 250um, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
A Fiber Reinforced Plastic locates in the center of core as a non-metallic strength member.
The tubes are stranded around the strength member into a compact and circular core.
After the cable core is filled with the filling compound to protect it from water ingress.
The cable is completed with a PE sheath.
Packing& Delivery
Package for GYTA53 48 core single mode fiber optic cable
- Wooden drums with test report.
- 1000m-6000m/roll,roll wide 40cm-100cm, diameter 50cm-160cm.
- Calculation for 20ft or 40ft containers.
Delivery GYTA53 48 core single mode fiber optic cable
Regularly 5-10 days after receiving the deposit,but still according to the specific quantity
Advantages & Features :
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight
6.Steel wire used as the central strength member
7.Loose filling compound
8.100%cable core filling
9.APL moisture barrier
10.PSP enhancing moisture-proof
11. Water-blocking material
Product Parameters
| able Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic |
| GYTA53-2-6 | 2-6 | 1 | 5 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-8-12 | 8-12 | 2 | 4 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-14-18 | 14-18 | 3 | 3 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-20-24 | 20-24 | 4 | 2 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-26-30 | 26-30 | 5 | 1 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-32-36 | 32-36 | 6 | 0 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-38-48 | 38-48 | 4 | 1 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-50-60 | 50-60 | 5 | 0 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-62-72 | 62-72 | 6 | 0 | 15..9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-74-84 | 74-84 | 7 | 1 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-86-96 | 86-96 | 8 | 0 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-98-108 | 98-108 | 9 | 1 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-110-120 | 110-120 | 10 | 0 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-122-132 | 122-132 | 11 | 1 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-134-144 | 134-144 | 12 | 0 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-146-216 | 146-216 | | | 21.3 | 395 | 1000/3000 | 1000/3000 | 10D/20D |
| | | | | | | | | |
