500M 1000M 2000M 5000M SC APC SC UPC ODTR Launch Cable

Name: 500M 1000M 2000M 5000M SC APC SC UPC ODTR Launch Cable
Brand: HICORPWELL
Price: 1 USD

Quality 500M 1000M 2000M 5000M SC APC SC UPC ODTR Launch Cable wholesale

Brand Name : HICORPWELL

Model Number : Bare Optical Fiber Spool OTDR Cable

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 10KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000KM Per Month

Packaging Details : Standard length: 2km/roll (as per your requirements)

Fiber Type : G652 bare fiber

Paintcoat Color : Aqua,yellow ,blue Or Others

Cable Purpose : ODTR or FO Cable

1310nm : 0.36-0.22 DB/Km

1550nm : 0.5-0.4 DB/Km

Fiber : G652D,G657A

Certificate : IEC 60794-2-10/11

Connectors : Can be added as per your request, SC/LC/FC/ST etc

Contact Now

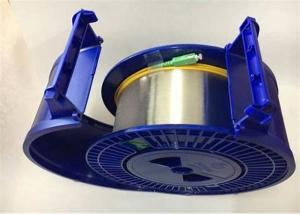

ODTR Launch Cable 500m 1000M 2000M 5000M SC-APC/SC-UPC Cable Spool SM G652D Bare Optical Fiber

An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss

and reflectance of the near-end connection.

A fiber ring serves as both a launch cable and a receive cable.

They are also pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings.

OTDR Dummy fiber is designed to be used in conjunction with an OTDR to measure complete link loss of

a fiber. A fiber ring serves as both a launch cable and a receive cable.

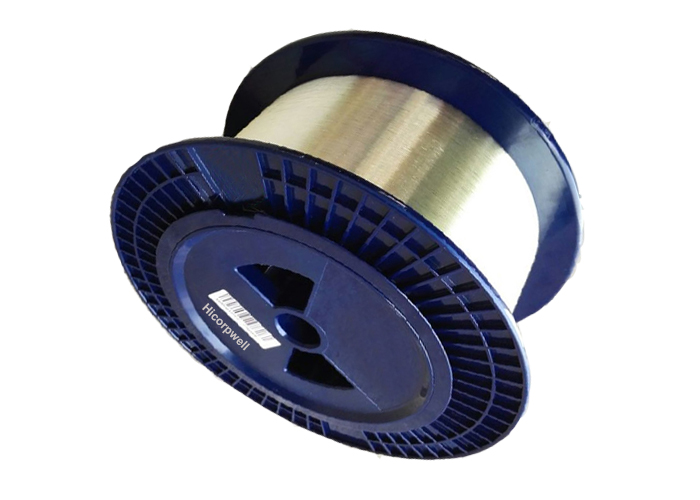

G652/G657 250um bare fiber
Connectors can be added as per your request, SC/LC/FC/ST etc
Standard length: 2km/roll (as per your requirements)

Specifications:

Transmission Characteristics
	SM (1310/1550 nm)	50/125 (850/1300 nm)	62.5/125 (850/1300nm)
Max Attenuation (dB/km)	0.4/0.30	3.5/1.5	3.5/1.5
Typical Attenuation (dB/km)	0.35/0.21	3.1/1.0	3.0/1.0
Mini Bandwidth (Mhz.km)	--	400/400	160/500

Note: The OTDR Launch cables can be added with certain connectors, such as FC-FC,SC-SC,FC-SC ST-ST etc.

Please pay attention to the connector type when you order.

Part No.	Description
Fiber-ROLL-SM10	SM G652D, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-SM20	SM G652D, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-MM10	MM (62.5/125um or 50/125um), 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-MM20	MM (62.5/125um or 50/125um), 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-SM710	SM G657A, 1KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-SM720	SM G657A, 2KM, Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional
Fiber-ROLL-OM310	OM3, 1KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
Fiber-ROLL-OM320	OM3, 2KM, Connector; FC/PC, SC/PC, ST/PC, LC/PC optional
