Bare Optical Fiber 0.22NA Ø27.5um Cross Section 3×3-25×25mm Bundles Fiber
Hicorpwell ensures the highest quality and best transmission for fiber optic bundles, while working within the boundaries of your application.
In order to optimize your bundle, we take several parameters into consideration: packing efficiency, fiber area efficiency, Numerical Aperture
optimization, fiber transmission, reflections, and an error factor (which includes numerical aperture discrepancies).
Our high quality fiber optic bundles can be made with any fiber and your choice of several configuration and construction possibilities.
In addition, a number of connectors, including all standard connectors—or custom ferrules, machined in-house—are available.
In addition, UVNS (UV Non-Solarizing) fibers can be fused at the ends to eliminate inter-fiber spaces—while maintaining the fibers’ NA
and increasing transmission by 50%. Please see our following Bundle data sheet for more information about our non-solarizing bundles
for UV applications.

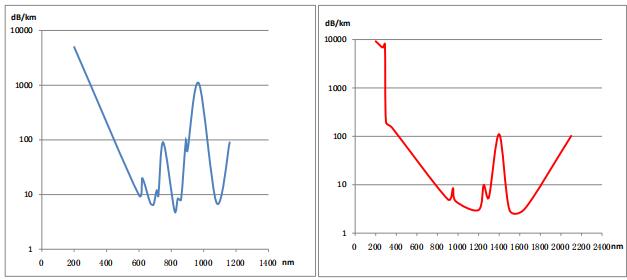

| Features | |
| Broad temperature range: -190˚ to +1500˚C | Resistant to magnetic radiation |
| Vacuum compatibility | Highest fiber efficiencies (best packing factor) |
| Variety of NAs available | Broadest line of fiber types |
| Radiation resistance | All fiber production and assembly work |
| Broadest wavelength range available | completed in-house |
| Manufactured at GMP and ISO 9001 compliant facility | |
| |
| Fiber Types | |
| UV / WF – All Silica Fibers | PUV / PWF – Plastic Clad Silica |
| 160 to 2500 nm | 200 to 2400 nm |
| Available NAs: | NA 0.40 ± 0.02 (2 meters) or 0.30 ± 0.02 |
| Low NA – 0.12 ± 0.02 | (greater than 40 meters) |
| Standard NA – 0.22 ± 0.02 | Optran HUV / HWF – Hard Polymer Clad Silica Fibers |
| 0.28 – 0.28 ± 0.02 | 350 – 2200 nm |
| 0.30 – 0.30 ± 0.02 | NA 0.37 or 0.48 ± 0.02 |
| 0.37 (Vis / IR) – 0.37 ± 0.02 | Borosilicate – Soft Glass |
| 0.44 (Vis / IR) – 0.44 ± 0.02 | 450 – 1600 nm |
| 0.53 (Vis / IR) – 0.53 ± 0.02 | NA 0.55 or 0.66 ± 0.02 |
| Temperature (configuration dependent): | Temperature: -45˚C to +275˚C (-49˚F to 527˚F) |
| –190°C to +400˚C (-310˚F to +752˚F) | |
| Vacuum compatible | |
| Jacketing Options | |
| PVC Simplex – up to +80˚C (176˚F) | |
Notes:
All bundles and assemblies are custom designed to meet your specifications. All standard connectors (SMA 905, SMA 906, ST, FC)
are available—or custom ferrules, machined in-house to your specifications. Refer to individual fiber data sheets for more information
and to determine the best fiber for your application. NA is measured at the 95% intensity angle.
We strive to ensure the accuracy of all information provided; however, we imply no warranties and
disclaim any liability in connection with the use of this information.
| Applications | |
| Spectroscopy | Photodynamic therapy |
| Sensors | Fluorescence excitation |
| UV photolithography | Analytical instruments |
| Particle detection | Scanning |
| Laser welding/soldering/marking | Colorimetry |
| Laser delivery | Laser diode pigtailing |
| Raman scattering | Chemical analysis |
| Monitoring | Semiconductor capital equipment |
| Smoke detection | Microscope illumination |
| Pyrometry | Streak cameras |
| Nuclear plasma diagnostics | Remote illumination |
| Thomson scattering | Reflective sensors |
| Quality control and inspection systems | |
Product Tags:
|
|

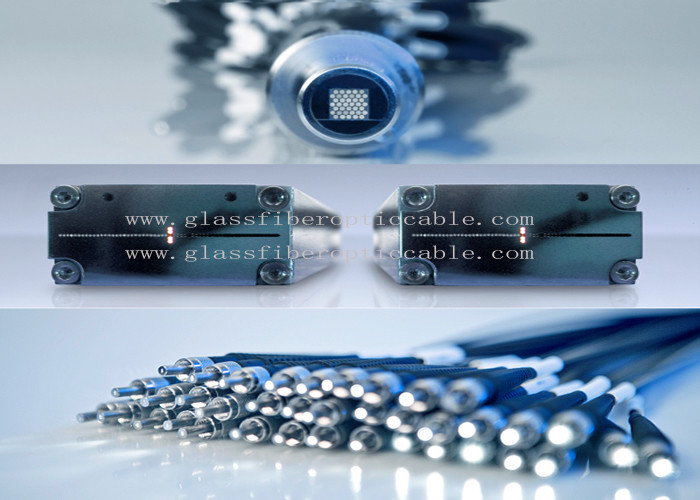

0.22NA Core Diameter 27.5um Cross Section Optical Fiber Bundle Images
|
